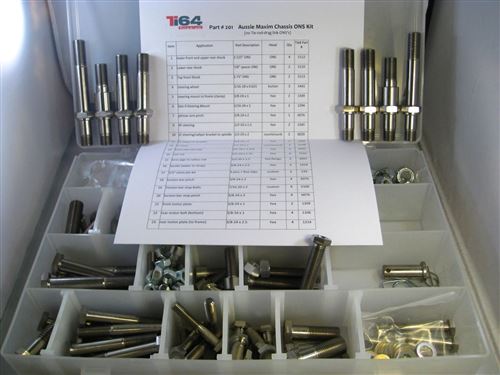

MAXIM AUSSIE ONS CHASSIS KIT

Aussie Maxim Chassis ONS Kit

The following items are included with this product:

• 4 of 3/8"-16 x 1" Hex Head Bolt
• 2 of 3/8"-16 x 2-1/2" Hex Head Bolt
• 2 of 7/16"-14 x 1-1/2" Hex Head Bolt
• 4 of 1/4"-28 x 3/4" Hex Head Bolt
• 1 of 1/4"-28 x 1" Hex Head Bolt
• 1 of 1/4"-28 x 1-1/2" Hex Head Bolt
• 2 of 1/4"-28 x 1-3/4" Hex Head Bolt
• 2 of 5/16"-24 x 1" Hex Head Bolt
• 2 of 5/16"-24 x 1-1/2" Hex Head Bolt
• 4 of 5/16"-24 x 1-3/4" Hex Head Bolt, 1/2" Thread
• 6 of 3/8"-24 x 1" Hex Head Bolt
• 4 of 3/8"-24 x 1-3/4" Hex Head Bolt with 1/2" of Thread
• 6 of 3/8"-24 x 2-1/2" Hex Head Bolt
• 2 of 1/2"-20 x 1-1/2" Hex Head Bolt
• 6 of 1/2"-20 x 2-3/4" Hex Head Bolt
• 12 of #10-32 Fine Thread, Steel Jet Nut
• 16 of 1/4"-28 Fine Thread, Jet Nut
• 11 of 5/16"-24 Fine Thread, Jet Nut
• 22 of 3/8"-24 Fine Thread, Jet Nut
• 3 of 5/16"-24 x 2-1/4" Hex Head Bolt
• 4 of 5/16"-18 x 3/4" Parallel Socket Head Screw
• 8 of 5/16"-18 x 1-1/4" Parallel Socket Head Screw
• 12 of #10-32 x 1-1/2" Parallel Socket Head Screw
• 6 of 3/8"-16 x 1" Parallel Socket Head Screw
• 2 of 1/2"-20 x 1-1/2" Ultra-Light Hex-Flange Bolt
• 4 of Stop Bolt, 7/16"-20 x 2"
• 2 of 3/8" x 3.75" Clevis Pin, 3.5" Effective Length
• 1 of 1/2" x 1.3" Clevis Pin, 1.05" Effective Length
• 2 of Lower Rear Shock Mount 1/2"-20 ONS, 1.1" chassis-side
• 4 of ONS 1/2"-20 for Heim + 2.125" Through-Bolt
• 2 of Shock Mount 1/2"-20 ONS, 2.75" Through-Bolt
• 3 of 1/2"-20 x 1" Countersunk Socket Screw, Reduced Head
• 12 of 1/4"-28 x 7/8" Button-Head Socket Screw
• 1 of 1/2" Rue Clip
• 2 of 3/8" Rue Clip
• 3 of 5/16"-18 x 5/8" Button-Head Socket Screw
• 10 of 1/2" AN Thin Washer, Steel
• 50 of 3/8" AN Thin Washer, Steel
• 18 of 5/16" AN Thin Washer, Steel
• 15 of 1/4" AN Thin Washer, Steel
• 27 of 1/2"-20 Steel Nylon Insert Lock Nut, Half Height
• 8 of 5/16"-18 Steel All-Metal Lock Nut
• 3 of 1/2"-20 x 1-3/8" Hex Head Bolt
• 2 of 1/2"-20 x 2" Countersunk Socket Screw, Reduced Head
• 6 of Torque Tube Stud, 3/8" -16-24 x 2"
• 12 of #10 AN Thin Washer, Steel
• 8 of 1/4"-28 x 1/2" Button-Head Socket Screw
• 4 of 3/8"-24 x 1-3/4" Hex Head Bolt
• 7 of 3/8"-24 x 2" Hex Head Bolt
• 4 of 7/16"-20 Ti Hex Jam Nut, Reduced Wrench
• 1 of Large Chassis Kit Box, Tuff Tainer 5007
