Chop House Titanium

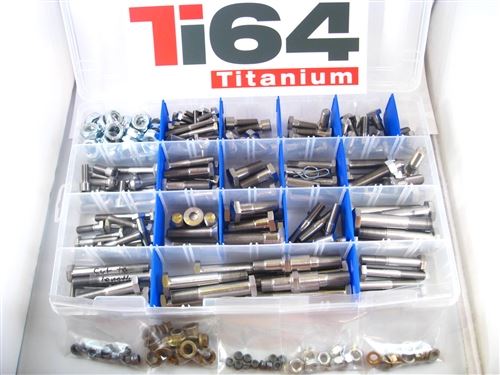

ART CHASSIS BOLT KIT

ART CHASSIS BOLT KIT

$1,060.19 USD
$1,060.19 USD
Sale Sold out
Shipping calculated at checkout.
ART Bolt Chassis Kit
Item Application Part Description Qty Ti64 Part #
1 Upper Front Shock ½-20x3.5” Hex  2 1351
2 Upper Rear Shock ½-20x2.75” Hex  2 1533
3 Lower Rear Shock 3” ONS  2 5110
4 Lower Front Shock ½-20x2.75” Hex  2 1345
5 steering wheel 5/16-18 x 0.625" Hex 3 3396
6 steering mount to frame (clamp) 3/8-24 x 1" Hex 2 1309
7 Gen II Steering Mount 5/16-24 x 1" Hex 2 1294
8 pitman arm pinch 3/8-24 x 1.75" Hex 1 6069
9 Tie rod drag link ½-20 x 2" Hex  4 1348
10 RF steering 1/2-20 x 1.5" Hex 2 1345
11 LF steering/caliper bracket to spindle 1/2-20 x 2" Countersunk 2 6029
12 LF caliper to bracket 3/8-24 x 1" Hex 2 1309
13 LF rotor 1/2-20 x 3/4" Countersunk 3 6038
14 front axle rad rods 1/2-20 x 1.25" Hex 3 1344
15 rad rod / Panhard 1/2-20x2.75" Hex Hex 6 1533
16 Jacobs ladder to straps (short thread) 3/8-24 x 1.75" Hex 2 1312
17 1/2" clevis pin kit 3 pins + Rue clips custom 1 133
18 torsion bar pinch 3/8-24 x 1.75" Hex 4 6069
19 Torsion bar stop bolts 7/16-20 x 2" custom 4 5100
20 torsion bar stop pinch 3/8-24 x 1.75" Hex 4 6069
21 front motor plate 3/8-24 x 1" Hex 2 1309
22 rear motor bolt (bottom) 3/8-16 x 1" Hex 4 1106
23 rear motor plate (to frame) 3/8-24 x 2.25" Hex 4 3716
24 motor plate top bolts 3/8-16 x 1.25" Hex 2 1107
25 torque ball housing 3/8"-16 x 1" Socket 6 4780
26 torque tube stud 3/8 x 2" custom 6 6042
27 bell crank 1/4-28 x 1.5" Hex 1 1281
28 brake pedal bot 3/8-24 x 2" Hex 1 1313
29 brake pedal top and master cylinder 5/16-24 x 2.25" Hex 3 3710
30 inboard rear brake rotor bolts 5/16-18 x 1.25" Button 8 5246
31 inboard rear caliper mount 7/16-14 x 1.5" Hex 2 1125
32 wing cylinder to frame 3/8-24 x 1" Hex 1 1309
33 wing cylinder to tree (heim) 3/8-24 x 1" Hex 1 1309
34 wing tree to wing and frame 3/8-24 x 1.75" Hex 2 1312
35 wing tree to wing and frame 3/8-24 x 2" Hex 2 1313
36 front wing strap to sideboard 1/4-28 x 0.75" Hex 4 1278
37 nose wing strap to frame and post 5/16-24 x 1.5" Hex 4 1296
38 top wing front post 5/16-24 x 1.5" Hex 2 1296
39 floor pan 1/4-28 x 1/2" Button 8 1277
40 fuel plate 1/4-28 x 7/8" Hex 12 1529
41 fuel tank 5/16-18 x 3/4" Socket 4 3857
42 nerf/bumpers 10-32 x 1.5" Hex 12 6088
43 Throttle Pedal ¼-28 x 3/4" Hex 2 1278
44 Top steering gear mount to frame ¼-28 x 2" Hex 2 1283
45 ½-20 half height nyloc (steel)   39 6012
46 3/8-24 Jet nut   17 1544
47 5/16-24 Jet Nut   9 1543
48 ¼-28 Jet Nut   11 1542
49 #10-32 Jet Nut   12 1541
50 5/16-18 Stover nut   8 6017
